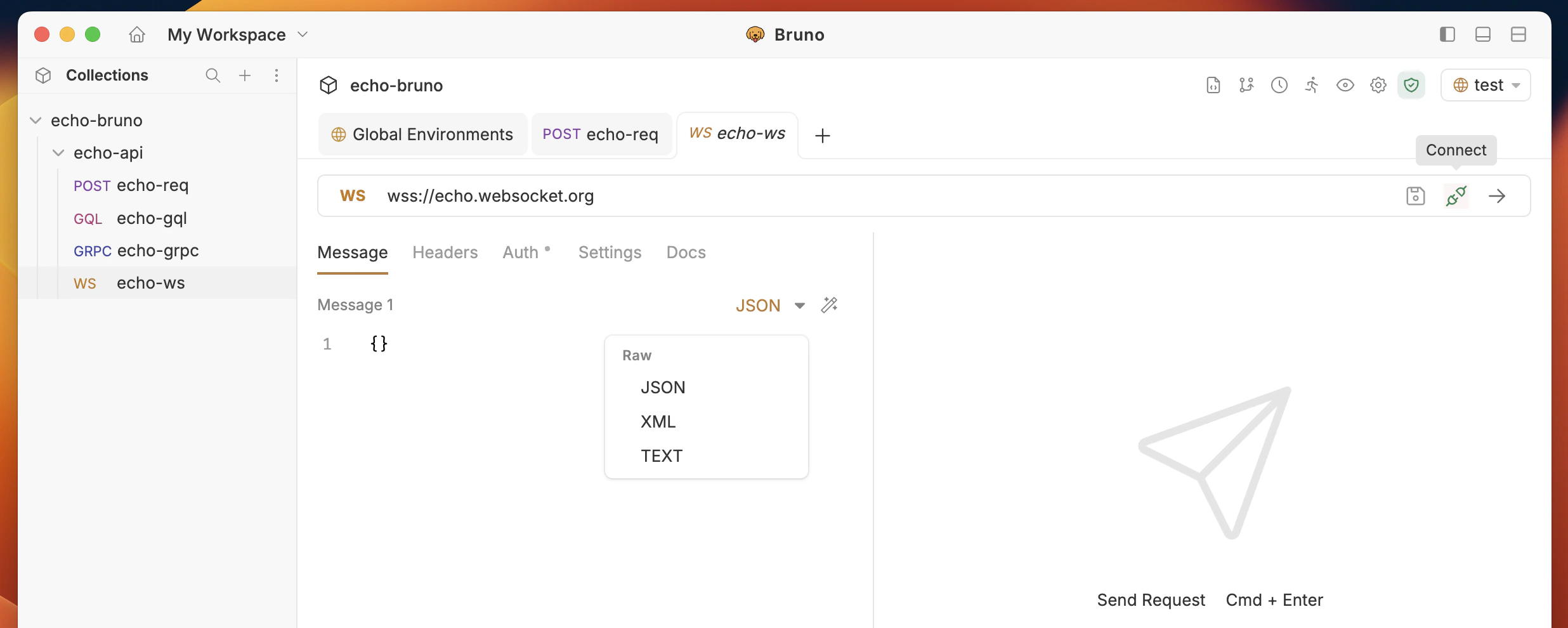

WebSocket Request Interface

The WebSocket request interface consists of several key components:

Request Interface

Connection Status

• Disconnected: Initial state, ready to connect
• Connecting: Establishing connection to server
• Connected: Successfully connected and ready to send messages
• Disconnected: Connection lost or manually closed

Message Composition

Bruno organizes WebSocket messages as a list of collapsible accordion panels, so you can save multiple reusable messages alongside a single request and send any one of them on demand.

Each message panel includes:

• Message name: Double-click the label to rename a message inline
• Message type: Switch between Text, JSON, and XML per message
• Message editor: Compose the payload with syntax highlighting
• Send button (per message): Send that specific message; auto-connects if the WebSocket is not yet connected
• Delete button: Remove the message (available when the request has more than one message)

The body tab also exposes two toolbar actions in the top-right:

• Add Message (+): Append a new message; new messages default to JSON and auto-expand for editing
• Prettify All (wand icon): Format every JSON and XML message in the request

The currently selected message (highlighted; others appear dimmed) is the one that will be sent when you click the global Send button at the top of the request.

Message History

• Sent Messages: All messages you’ve sent (marked with →)
• Received Messages: All messages received from server (marked with ←)
• Timestamps: When each message was sent/received
• Message Sorting: Toggle between newest/oldest first

Connection Management

Establishing Connection

1. Click the “Connect” button to establish the WebSocket connection
2. Monitor connection status in the status indicator
3. View connection logs for detailed connection information

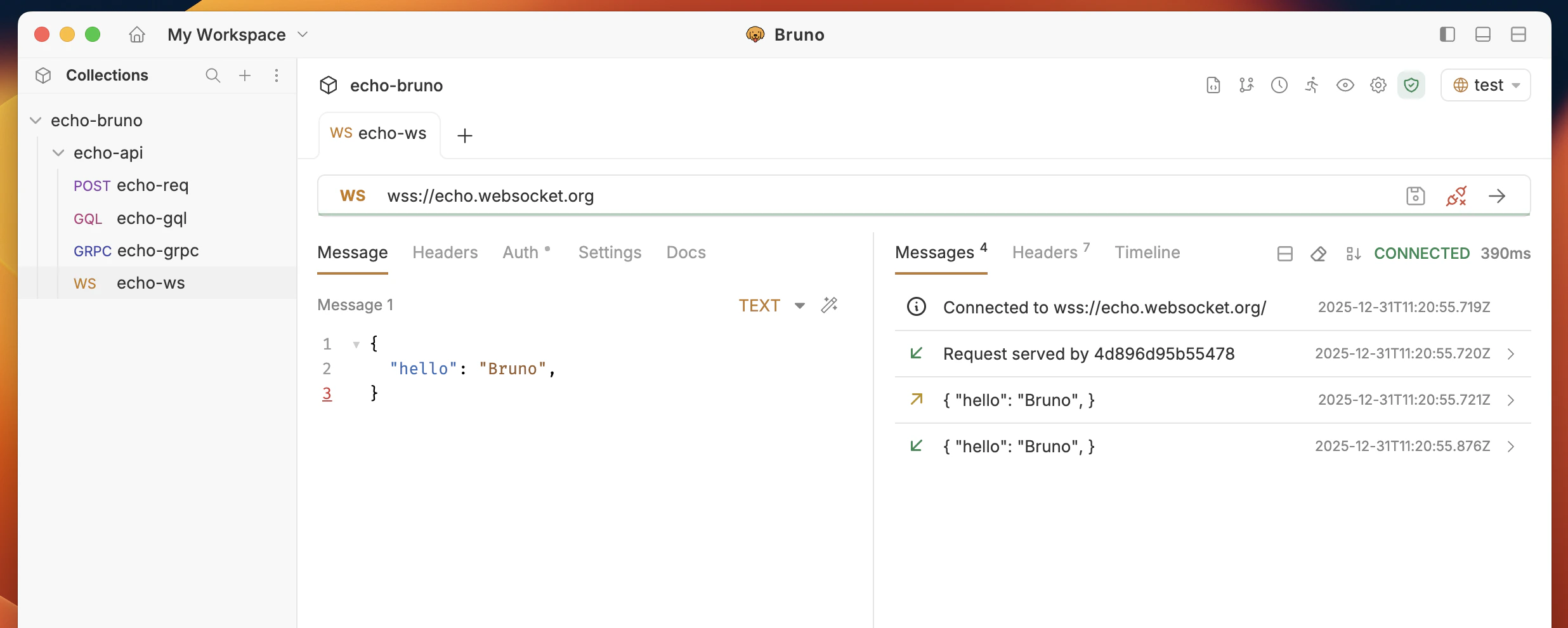

Sending Messages

1. Compose your message in the message editor
2. Select the message type (Text, JSON, XML) for that message
3. Send the message in one of two ways:
   • Click the per-message Send button on a specific message panel to send that message
   • Click the global Send button at the top of the request to send the currently selected message
4. View sent message in the message history

If the WebSocket connection is not yet open, sending a message will auto-connect first.

Working With Multiple Messages

You can store multiple messages in a single WebSocket request, which is useful for testing different payload variants without creating separate requests.

1. Add a message: Click the + icon in the body tab toolbar (or the Add message link if the request has none). New messages default to JSON.
2. Rename a message: Double-click the message name in the accordion header and press Enter to save.
3. Switch types per message: Use the type selector in each message panel to change between Text, JSON, and XML independently.
4. Select the active message: Click any message panel to select it; the selected message is what the global Send button transmits.
5. Prettify all: Click the wand icon in the body tab toolbar to format every JSON and XML message at once.
6. Delete a message: Hover the message header and click the trash icon. The delete control is hidden when only one message exists.

Multi-message support is preserved across both .bru and .yml collection formats, so saved requests round-trip without losing message names, types, or selection state.

Receiving Messages

1. Monitor the message history for incoming messages
2. View message details including timestamp and content
3. Use test scripts to validate received messages

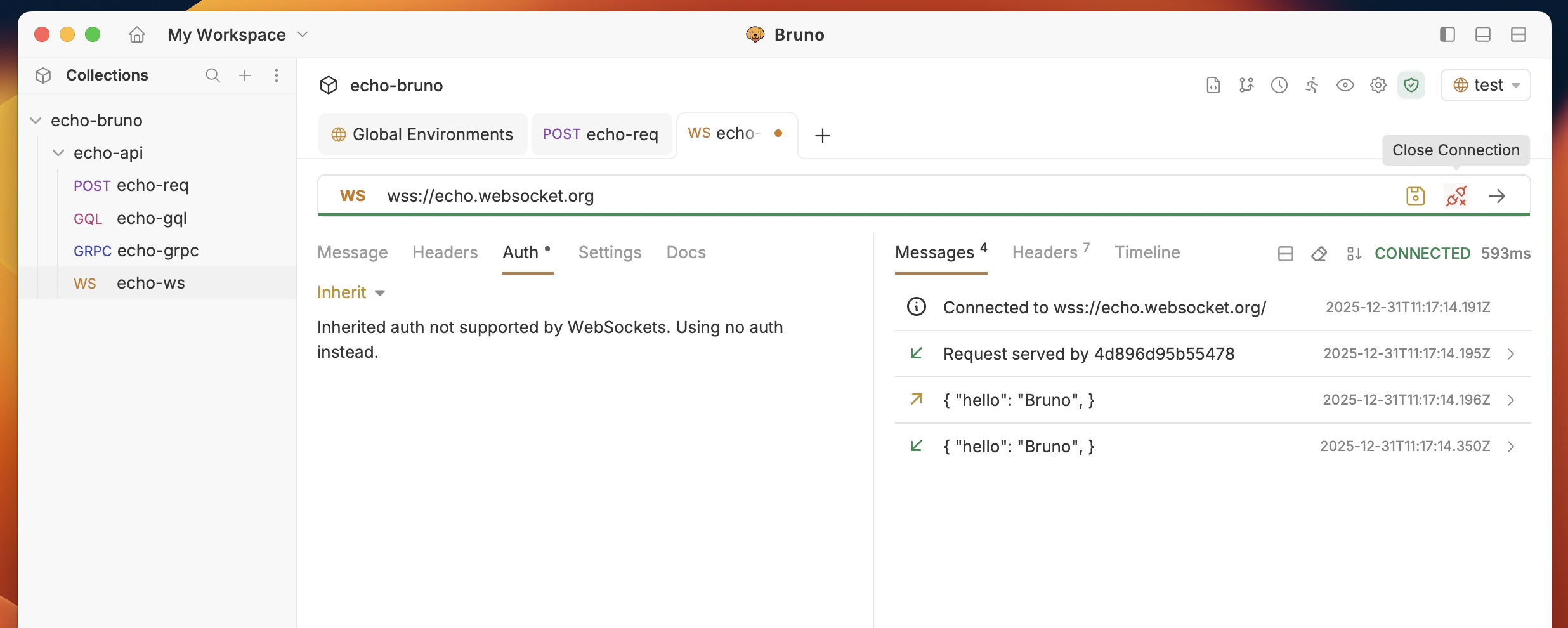

Closing Connection

1. Click “Disconnect” to close the WebSocket connection
2. Connection status will update to “Disconnected”
3. Message history is preserved for review
